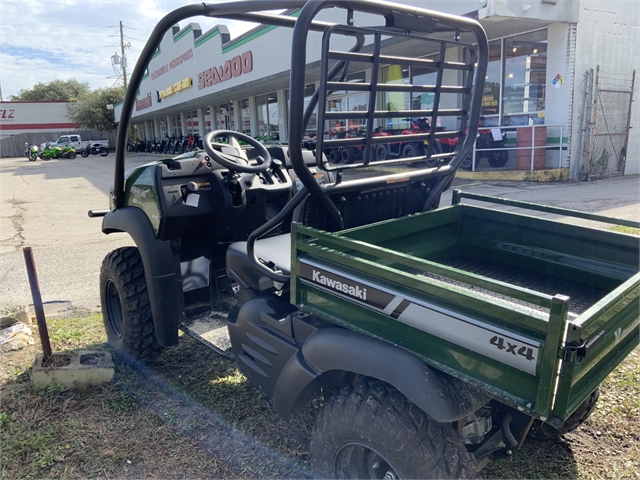

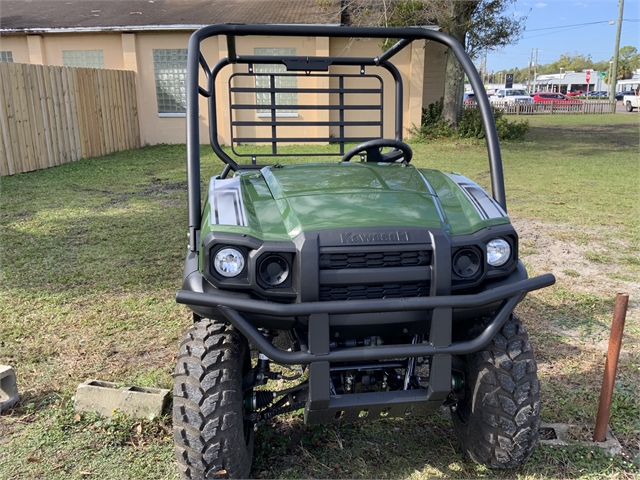

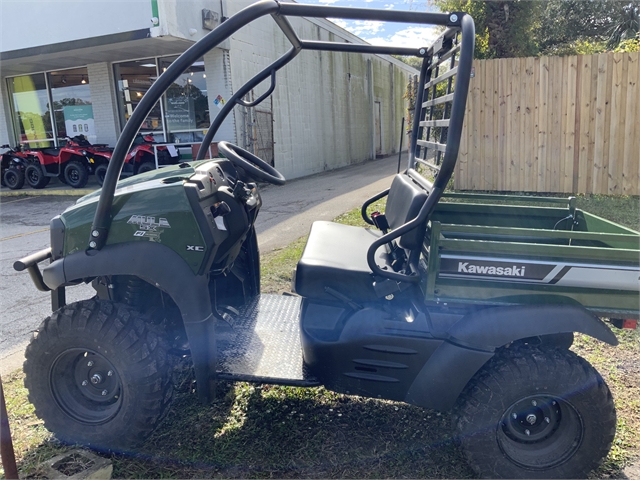

2023 Kawasaki Mule SX 4x4 FI

TRIED AND TRUE!

Stock #516722
MSRP: $9,099 USD

172 people have recently viewed it.
Check Availability
Hi, my name is and I'm interested in this 2023 Kawasaki Mule SX FI 4x4 . I'm in the area and you can reach me at or by phone at
  • Status:
    New
  • Vehicle:
    2023 Kawasaki Mule SX 4x4 FI
  • VIN:
    JK1AFEP19PB516722
  • Model Number:
    KAF400PPFNN
  • Color:
    GRN
  • Stock Number:
    516722
  • Title:
    Clear
  • Location:
    Jacksonville Powersports, Jacksonville, FL 32225
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Sealed Hydraulic Drum
  • Rear Brake Type:
    Sealed Hydraulic Drum

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2
  • Rear Unlocking Differential:
    Yes

ENGINE

  • Bore (in):
    3.23
  • Bore (mm):
    82
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    8.6
  • Cooling:
    Air / Fan
  • Cylinders:
    1
  • Displacement (cc):
    401
  • Displacement (ci):
    24.5
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    23
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Speed Governor:
    Yes
  • Starter:
    Electric
  • Stroke (in):
    2.99
  • Stroke (mm):
    76
  • Torque (Ft Lbs):
    21.4
  • Torque (Nm):
    29
  • Torque RPM:
    2400
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Frame:
    Steel
  • Front Mud Guards:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Folding:
    Yes
  • Number Of Rows:
    1
  • Number Of Seats:
    2
  • Seat Material:
    Vinyl
  • Seat Type:
    Bench

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Rack & Pinion

STORAGE

  • Bed Capacity (kgs.):
    181
  • Bed Capacity (lbs.):
    399
  • Bed Height (in):
    9.6
  • Bed Height (mm):
    243.8
  • Bed Length (in):
    35.6
  • Bed Length (mm):
    904.2
  • Bed Volume (ft3):
    8.1
  • Bed Volume (m3):
    0.2
  • Bed Width (in):
    40.9
  • Bed Width (mm):
    1038.9
  • Cargo Bed Material:
    Steel
  • Cargo Bed Tilt:
    Yes
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    2
  • Rack Rails Location:
    Cargo Bed

SUSPENSION

  • Adjustment Type:
    Shock Mounted Adjustment
  • Front Suspension Type:
    McPherson Strut
  • Front Travel (in):
    3.1
  • Front Travel (mm):
    78.7
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    3.1
  • Rear Travel (mm):
    78.7

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    4.2
  • Fuel Capacity (l):
    15.9
  • Ground Clearance (in):
    6.7
  • Ground Clearance (mm):
    170.2
  • Height (in):
    70.9
  • Height (mm):
    1800
  • Length (ft):
    8.89
  • Length (ft/ft):
    8
  • Length (ft/in):
    10.7
  • Length (in):
    106.7
  • Length (mm):
    2710.2
  • Payload Capacity (kgs):
    415
  • Payload Capacity (lbs):
    915
  • Towing Capacity (kgs):
    499
  • Towing Capacity (lbs):
    1100
  • Turning Radius (ft):
    10.8
  • Wet Weight (kg):
    468.1
  • Wet Weight (lbs):
    1031.9
  • Wheelbase (in):
    70.1
  • Wheelbase (mm):
    1780.5
  • Width (in):
    52.6
  • Width (mm):
    1336

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Duro
  • Front Tire Diameter (in):
    24
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    10
  • Rear Tire (Full Spec):
    Duro
  • Rear Tire Diameter (in):
    24
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    10
  • Tire Brand:
    Duro
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Steel
